Manifold Header

Manifold/ Header

From £150.00

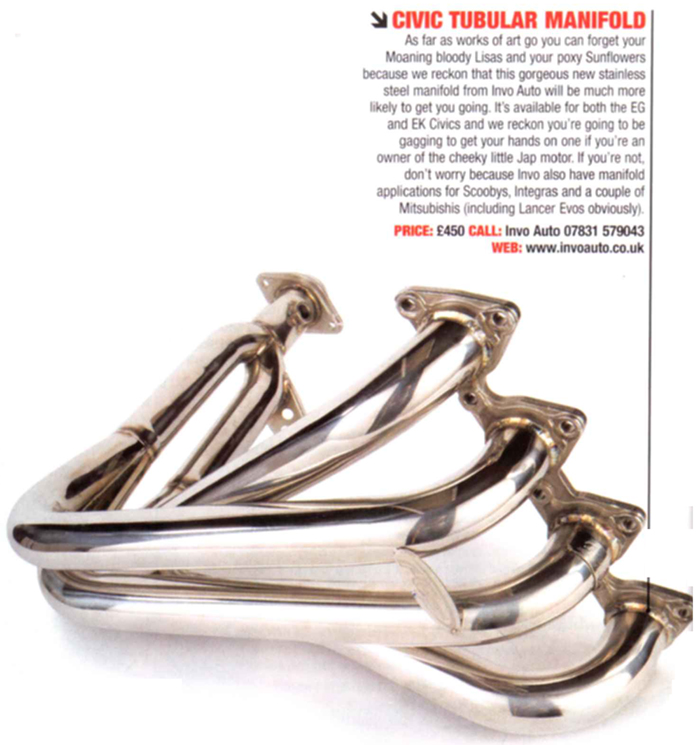

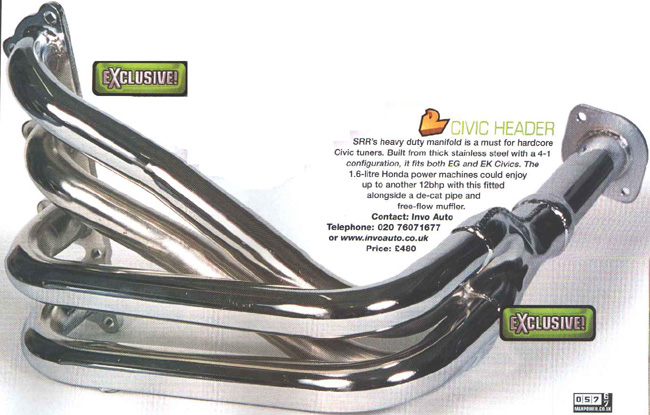

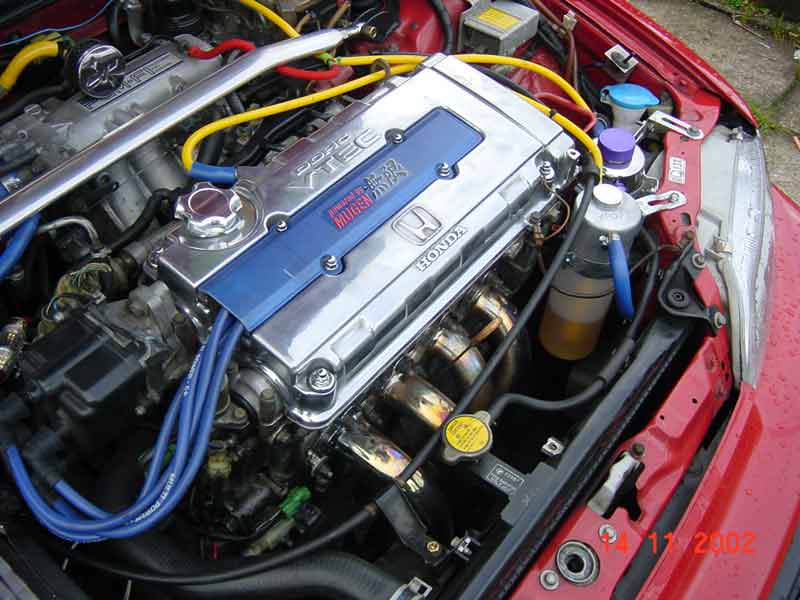

All INVO Manifolds have been featured in Max Power, Fast Car, Red Line, REVS, Japanese Performance and Banzai magazines!!! SRR’s heavy-duty manifold is a must for hardcore Civic tuners. Built from thick stainless steel with a 4-1 configuration, it fits both EG and EK Civics. The 1.6 litre Honda power machines could enjoy up to another 12bhp with this fitted alongside a de-cat pipe and free-flow muffler. click for larger review. Reviewed in Max Power Magazine April 2002
Performance Gains Our manifolds/ headers offer the enthusiastic car tuner another option for improving engine performance. By installing headers, you will be able to maximise the motors output in the mid to high RPM range. The chart on the right was a diagnostics test of a Honda Civic B16A2 Engine VTEC. As you can see from the chart, it made a significant change in BHP. Approximately 10-12 BHP gain.


Above are pictures of the Invo 4into2 manifold. You can see clearly the joints and how good the quality of welding is. It is very light, weighing only 6kg.

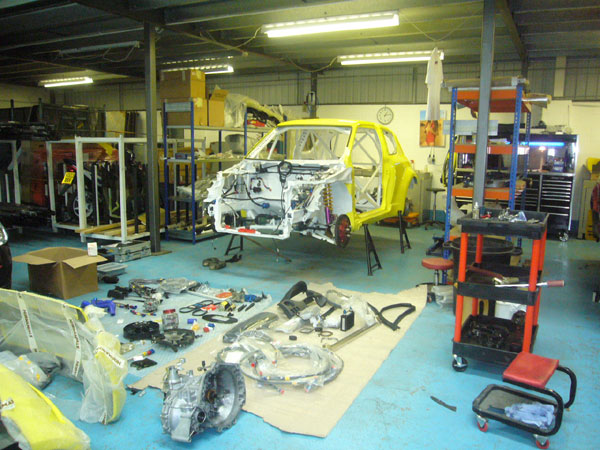

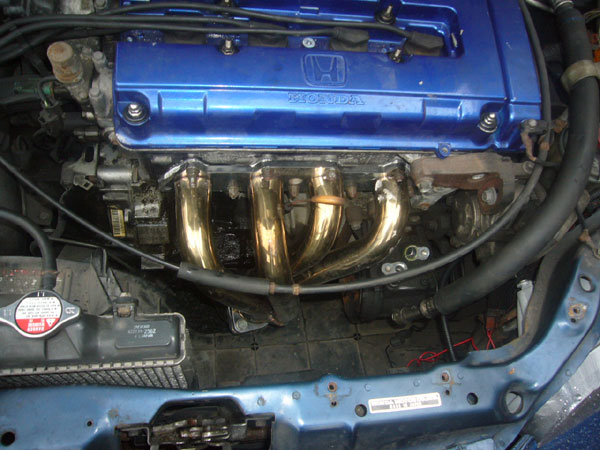

		DRD Motorsports, their Honda Civic EG Rally have prepared and installed our New Invo 4 branch into 1 manifold, Full Titanium cat back Exhaust system and New carbon Air Induction box. DRD Motorsports taken their Rally Honda Civic to the company called TTM in Galway Ireland for ECU Remapping and Power Run. Both pictures on the left show bhp and torque figures. Thanks for DRD Motorsports give us the graphs.

	Part Number	Description		R.R.P

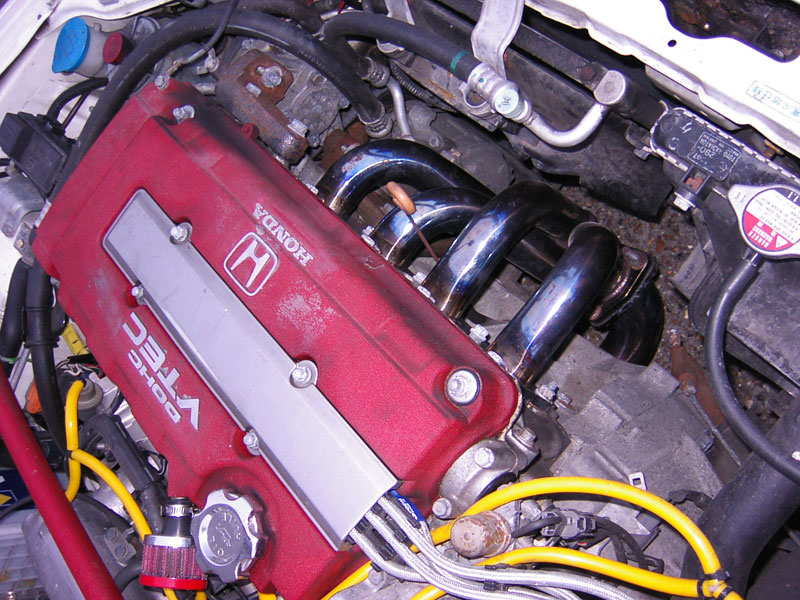

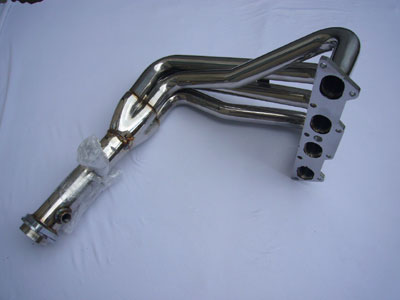

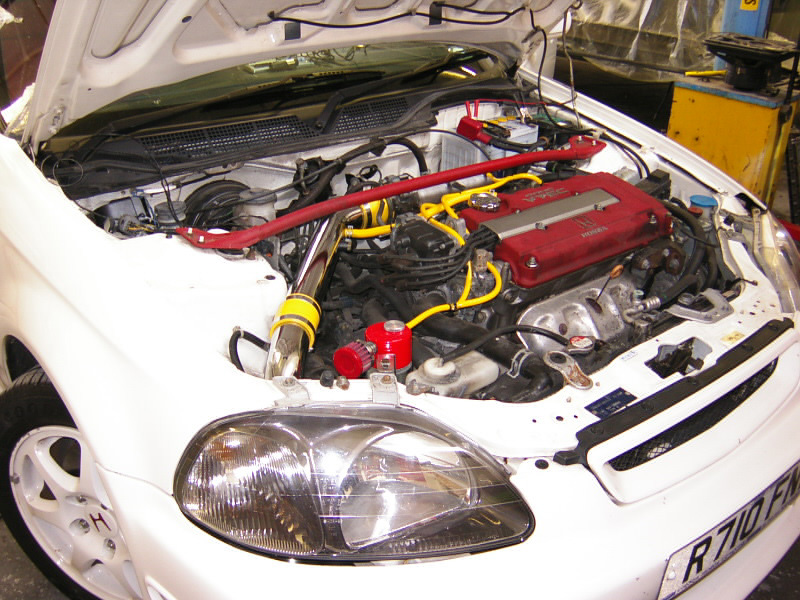

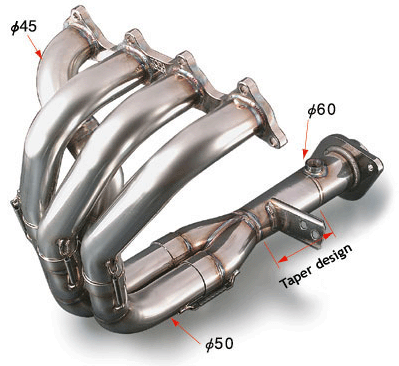

	HC-SS-5507-DOHC/B16B-B18C B18C SILVER STAINLESS	Fitment Honda Civic EK-9 Type-R 96 to 00 Honda Integra DC2 Type-R 94 to 01 Engine Code B16B and B18C 4 Branch into 1 Stainless Steel Polish Exhaust Manifold. Also known as Header.		£360+VAT IN STOCK
		Click for large Pic	Click for large Pic

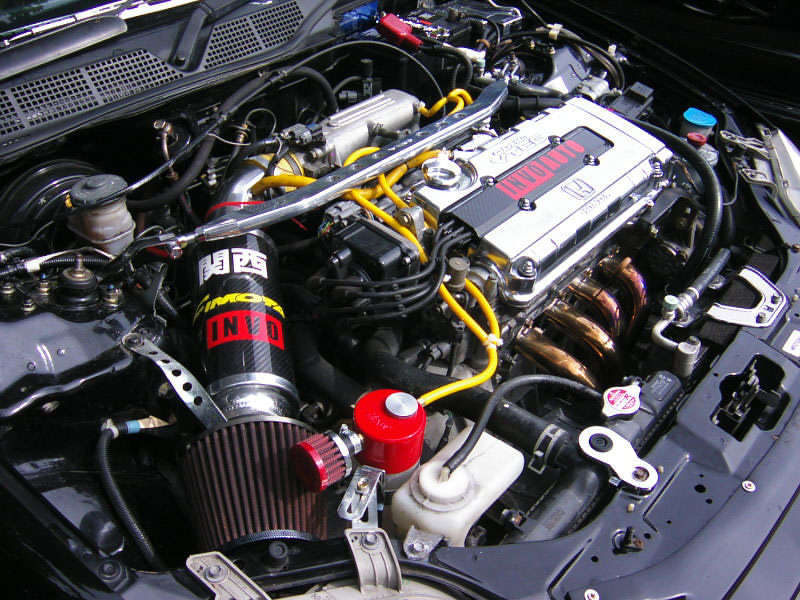

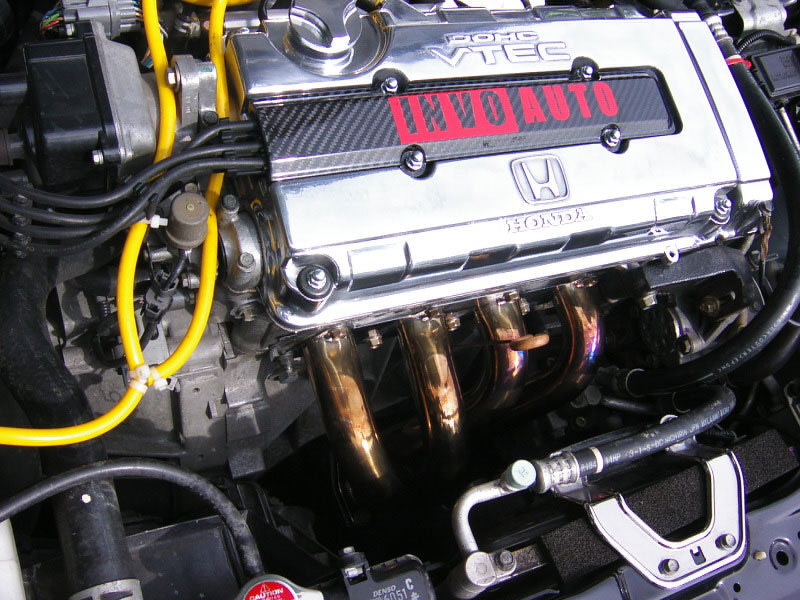

	HC-SS-5514-SOHC HC-INT-SS6505-DOHC-B16A2-B18B B16A GOLD STAINLESS	4 Branch into 1 Stainless Steel Exhaust Manifold. Also known as Header. Fitment Honda Civic Model EG and EK 92 to 00. Engine Code B16A2 Honda Integra B18B 94-2000 including Honda Civic 5 Door Hatchback Built in Swindon UK 1.6 & 1.8 VTi VTEC.	Click for large Pic Pics Below, 1, 2	£360+VAT IN STOCK

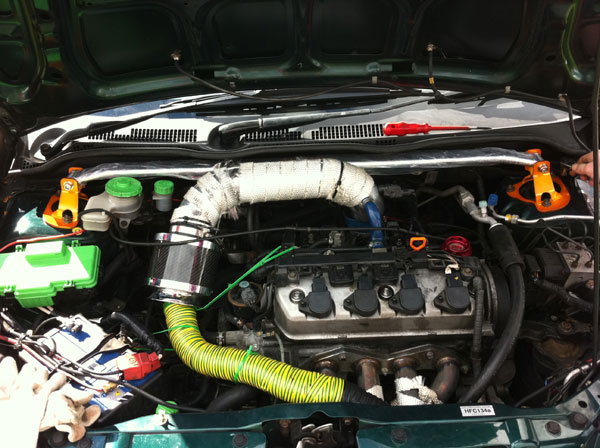

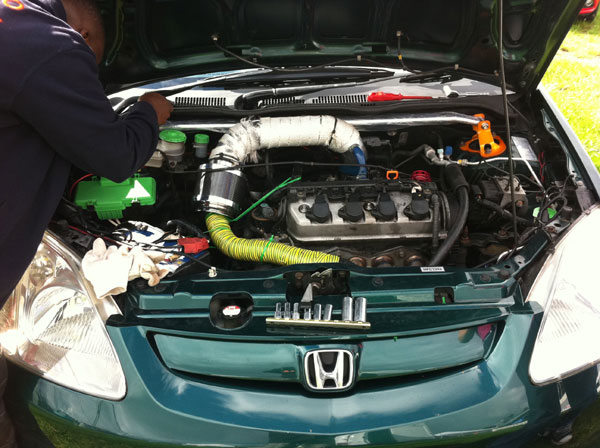

	Civic-01	Honda Civic EP2 Type-S 1.6 01 to 05 Model for 2 Door Coupe and 4 Door Saloon 1.6, 1.7. 01 to 05 Light Weight 4-1 One Piece Manifold		£350+VAT OUT OF STOCK

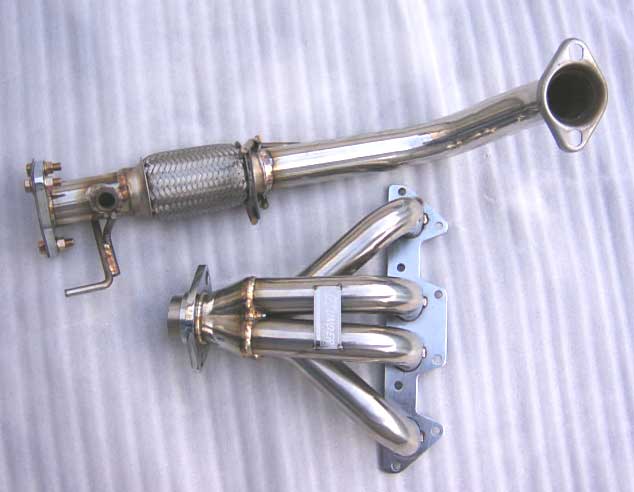

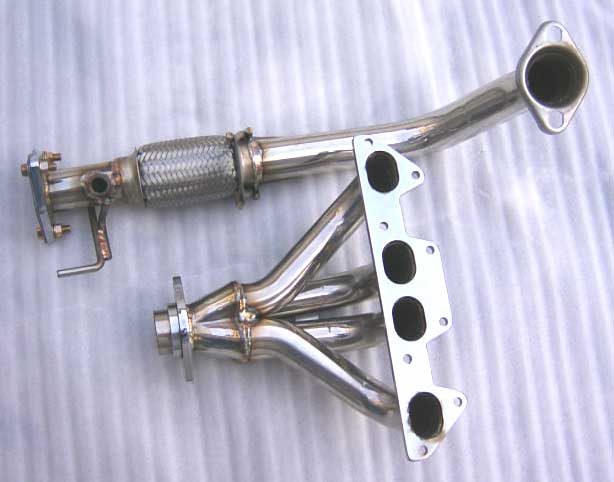

	H-ACC-SS-5018SOHC HAC18-20	Honda Accord/Prelude 98-2003 1.8 and 2.0L SOHC V-TEC. Light weight, weighs 7.kg		£350+VAT IN STOCK

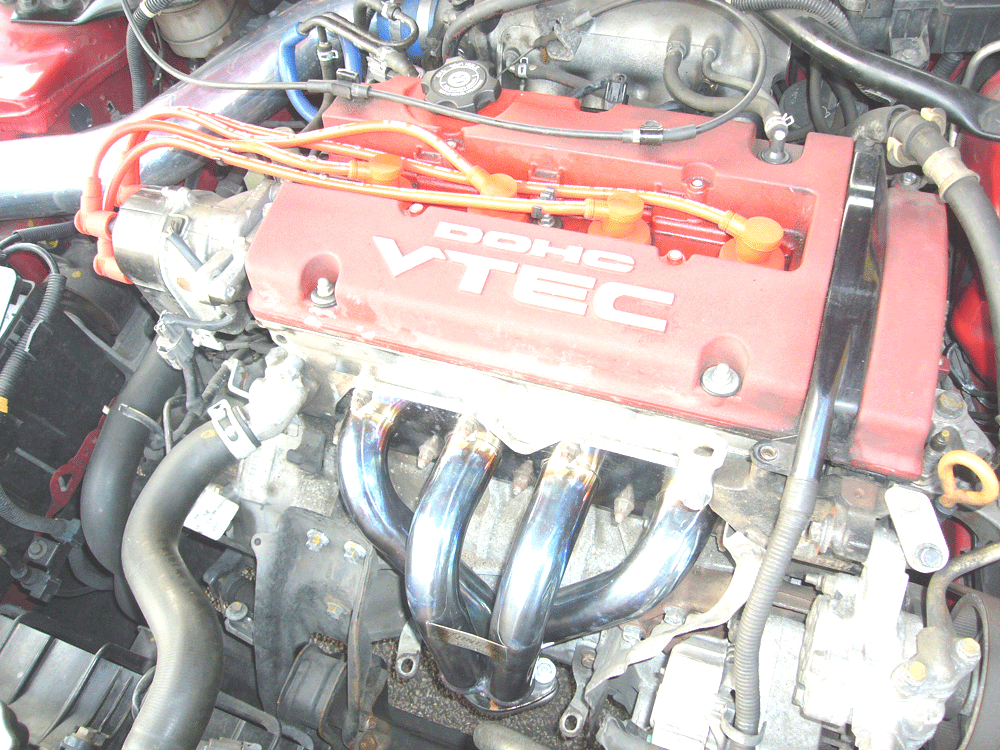

	H-ACC/PRE-SS-6022-92DOHC PH22	For Honda Accord 2.2-DOHC VTEC Type-R 98 to 03 Model-CH1 and Prelude 97-on Model BB5/6/8 2.2 DOHC VTEC Engine Engine Code H22A-5//7/8/ and F22B 4-1 One Piece Manifold, Light Weight, Weighs 8.5KG		£390+VAT IN STOCK

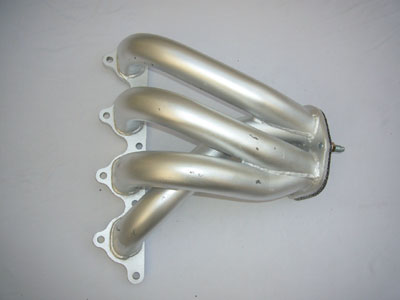

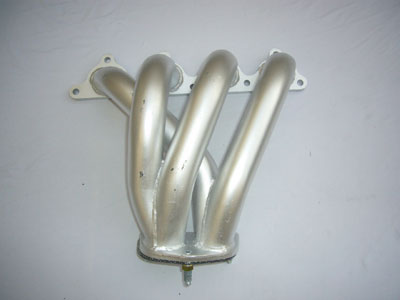

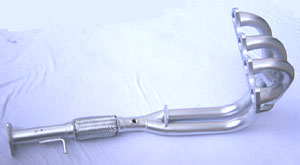

	H-ACC/PRE-CC6022-92 HHP-9203RV	For Honda Accord 94 to 97 Model-CD7/CE1& 9 and Prelude 92-96 Model-BA8/9 and BB1/4 2.2 VTEC Engine Code H22A-2 and F22B and F22B-5/F22Z-2 4-2-1 Two Piece Manifold Ceramic Coated 14 inches(35cm) wide from the cylinder head		£170+VAT OUT OF STOCK
	HHP-9203RS	For Honda Prelude 92-96 IMPORT MODEL SI ONLY 2.2 VTEC Engine Code H22A 4-2-1 Two Piece Manifold Ceramic Coated 15 inches(39cm) wide from the cylinder head		£170 +VAT IN STOCK

	H-ACC/PRE-CC6022-97 HHP-9703R	For Honda Prelude 97-ON Model-BB5/6/8 2.2 VTEC Engine Code H22A-5/8 AND F22B 4-2-1 Two Piece Manifold Ceramic Coated 14 inches(35cm) wide from the cylinder head		£170 +VAT OUT OF STOCK

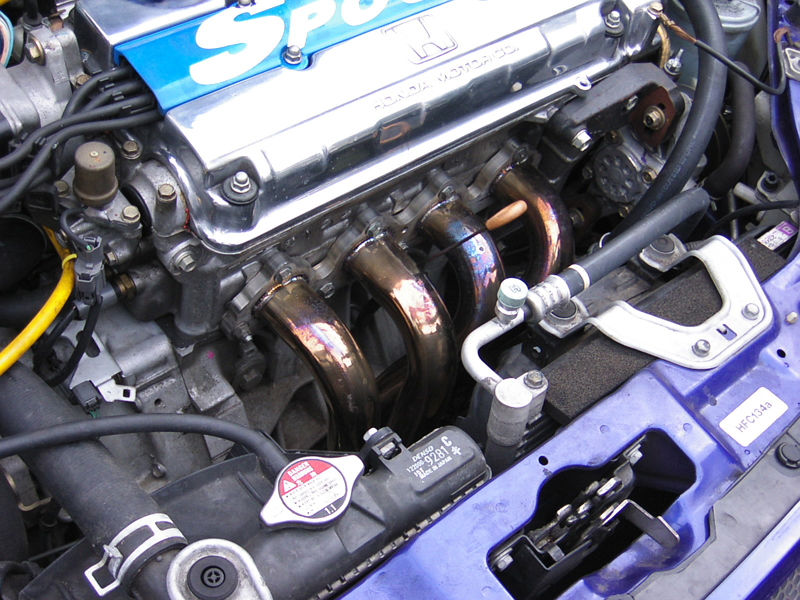

	HC-SS-5506 HC-SS-5013-DOHC 4-IN-1 one Piece	4 into 1 High Polish Stainless Steel Exhaust Manifold One Piece Also known as Header. Spoon Similarly style. Fitment for Honda Civic EG & EK Model 92-2000. Engine Code 1.5 and 1.6 SOHC or DOHC. Larger Pic 1, 2		£290 +VAT IN STOCK

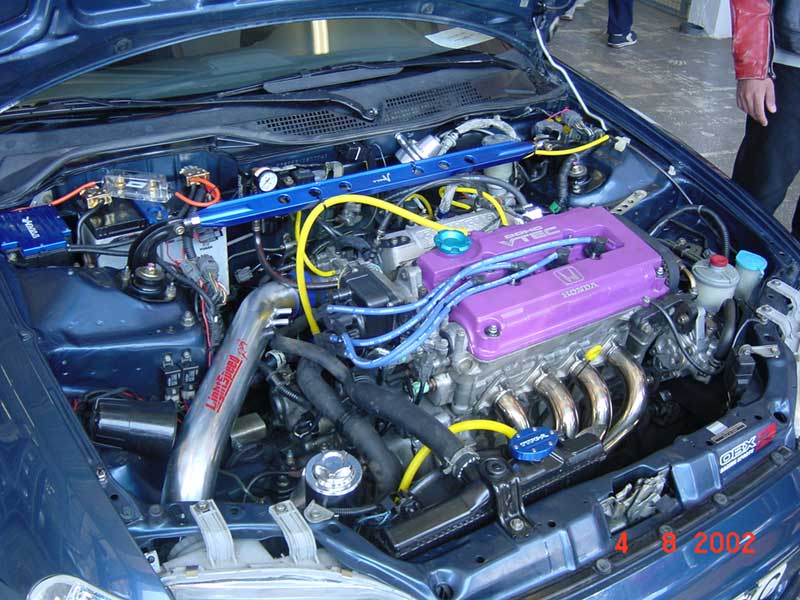

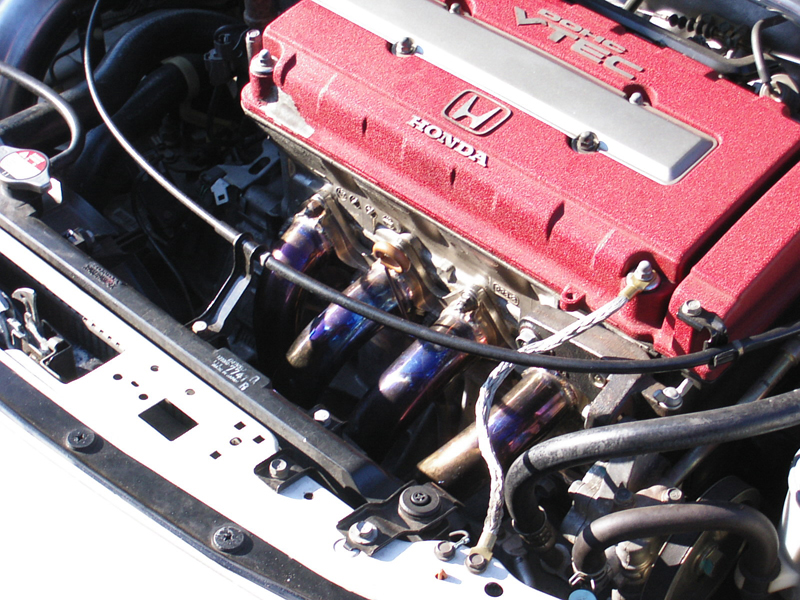

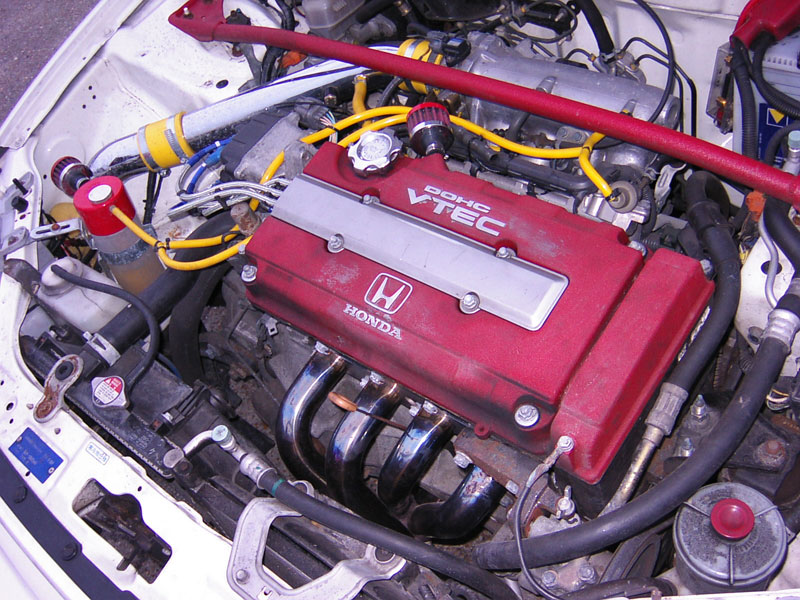

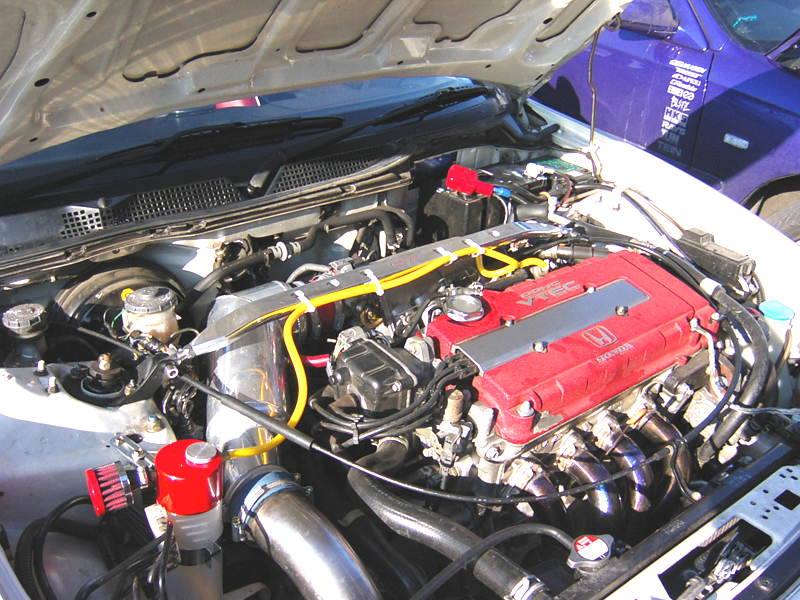

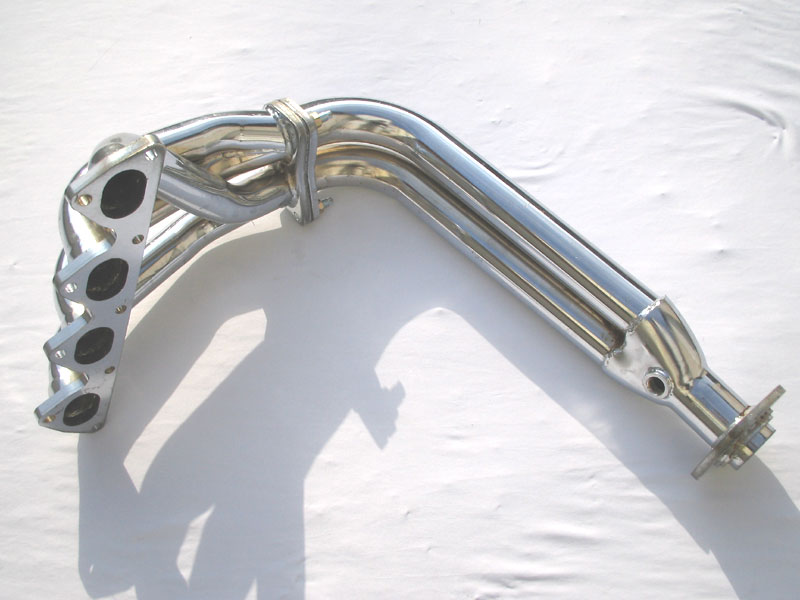

Large Pic Larger review pic	HC-SS-5513-SOHC HC/INT-SS6504-DOHC/B16B-B18C HC-SS-5505-DOHC/B16A-B18 4-2-1 One Piece	INVO 4-2-1 One Piece Stainless Steel Exhaust Manifold and Also known as Header. Made By Invo and P&C Muffler Co. Fitment for Honda Civic EG & EK Model 92-2000. Glows Purple/Gold when driven hard, B16A2 and B16B CIVIC Type-R. Fitment for Honda Integra Type-R. 96 to 00 Glows Purple/ Blue when driven hard, B18C Integra Type-R. Larger Pic Engine Code B16A, B16A2, B18B, B18C, and 1.6 VTI DOHC VTEC Enging Code D14A4 and D15B,Z and D16Z,Y SOHC VTEC AND SOHC NON-VTEC Glows Purple/Gold when driven hard, B16A2 and B16B CIVIC Type-R. Weighs 6kg Click to see larger pic. Manifold fitted onto a clients car in Portugal by our agents Nipo Tuning. B18B Engine. Check agents page.		£350 +VAT IN STOCK





	H-I-SS-M-TYPE-S	INVO Stainless Steel Manifold 4 Branch into 1 for Integra DC5 Type S 01 onwards and new Civic 01 onwards Type S 2.0L. Engines Code K20A (169 BHP )		£370 +VAT IN STOCK

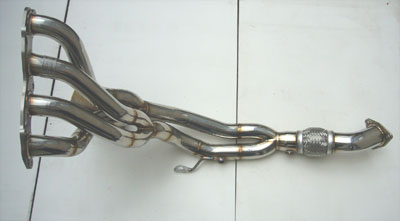

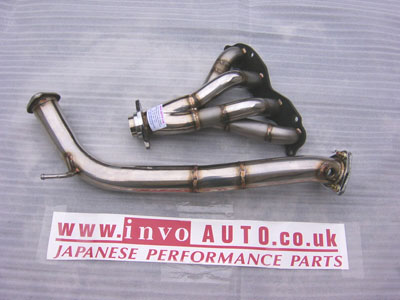

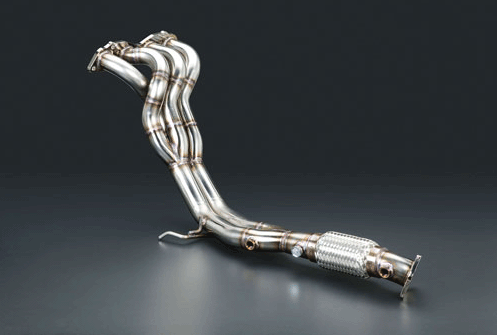

	H-I-SS-M-TYPE-R	Honda Integra DC5 Type R 01 onwards and Honda Civic EP3 Type R 01 to 05 Engines Code K20A (198 and 220 BHP ) Polish Stainless Steel 4-2-1 One Piece Exhaust Manifold and Weight 6.KG Made By P&C INVO		£450 +VAT IN STOCK

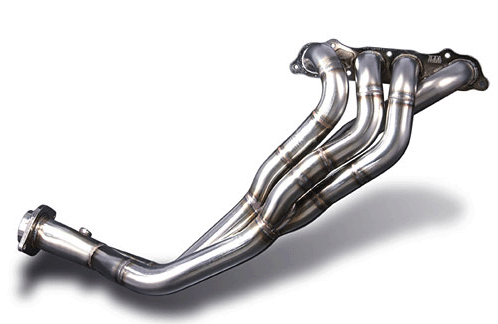

	S-2000 18100-AP1-000	4 -2- 1 High Polish Stainless Steel Exhaust Manifold. Also known as Header. Made By TODA RACING. Fitment for Honda S2000 Coupe. Special order on request ONLY		£855 +VAT SPECIAL ORDER OUT OF STOCK

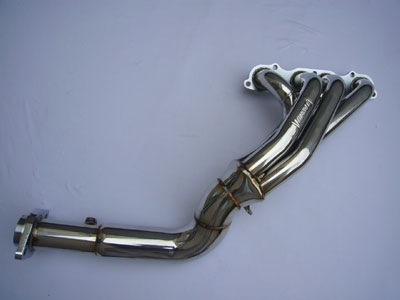

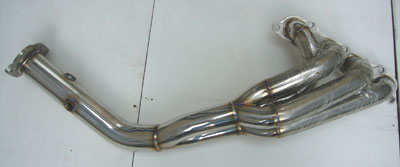

	H-S2000-SS-M S2000	4-2- 1 High Polish Stainless Steel Exhaust Manifold. Also known as Header. Fitment for Honda S2000 Coupe. Model API 99 >		£550 +VAT IN STOCK

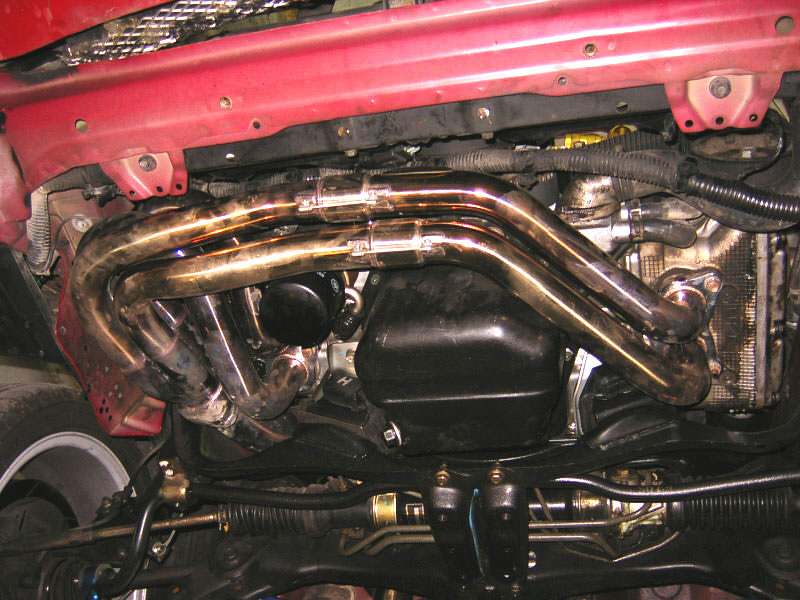

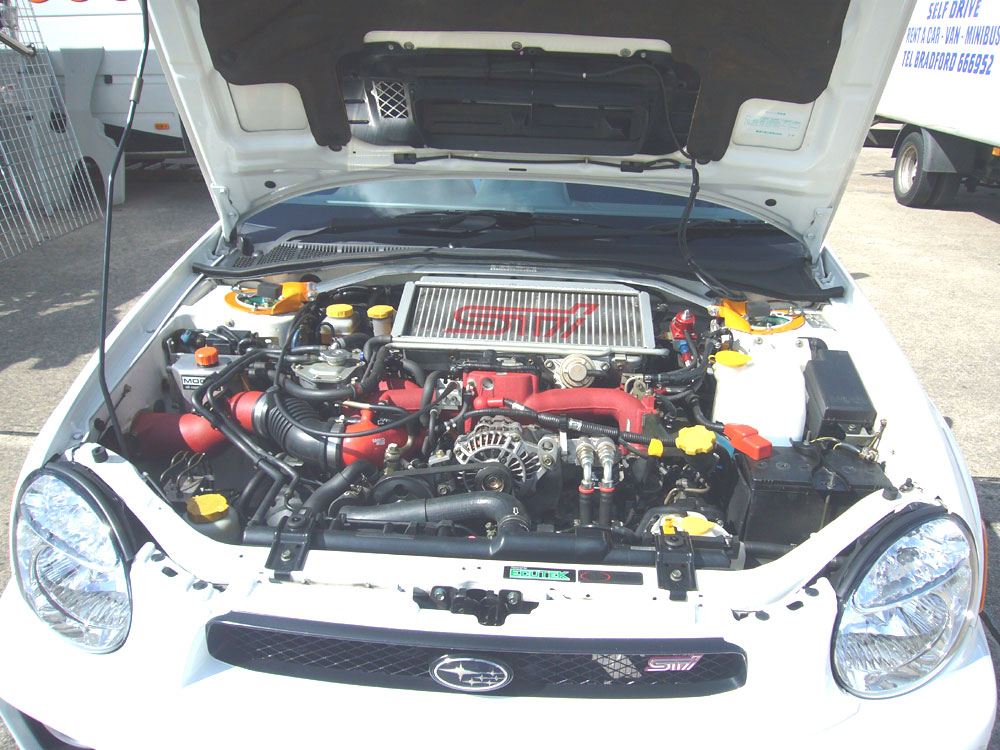

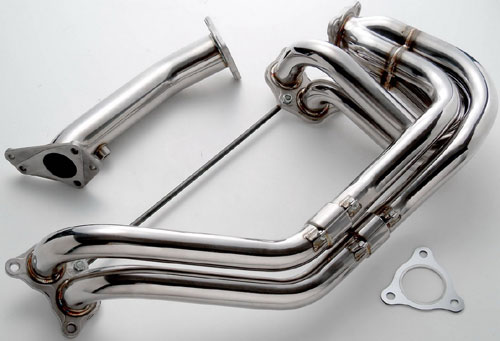

	P&C/Invo SUBARU-WRX&STi 4-1 one Piece	For Motor Sports Use Group N	Super High Flow Stainless Steel Exhaust Manifold. TIG Welding SUS304. Weighs Approx 12kg Fitment Subaru Impreza WRX. STI Model GC8 GF8 GDA GDB 93-05 Engine Code EJ20-Turbo 3,4,5,6,7,8 Incl. STI.	£450+VAT OUT OF STOCK

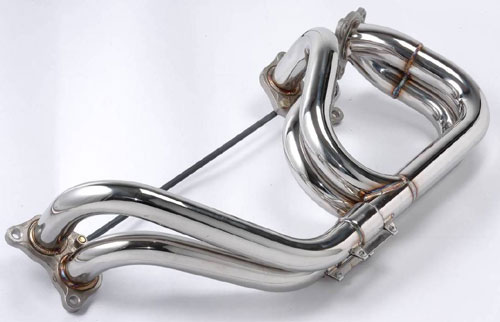

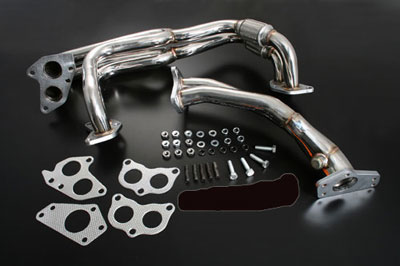

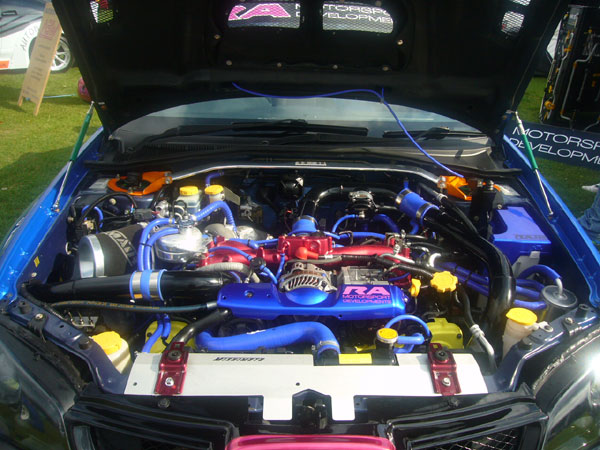

	SUBARU- WRX STI	High Polish Stainless Steel Turbo Manifold. Fitment Subaru Impreza WRX STI. 01 to 07 Model GDA / GDB and GGB Engine Code EJ20 Turbo and EJ25 Turbo Special Order on Request Only		£490 +VAT SPECIAL ORDER
	GP-Rally Manifold 4-1 one Piece	Super High Flow Stainless Steel Exhaust Manifold. TIG Welding SUS304. Light Weight Approx 7kg Also Known as Header. Made by GP Racing. Fitment Subaru Impreza WRX. Model GF8 92-96 Engine Code EJ20 Turbo V1, 2. Model GC8 96-00 Engine Code EJ20 Turbo V3, 4. Incl. STI. FULL FIA For Motor Sports Use Group N		£490 +VAT IN STOCK

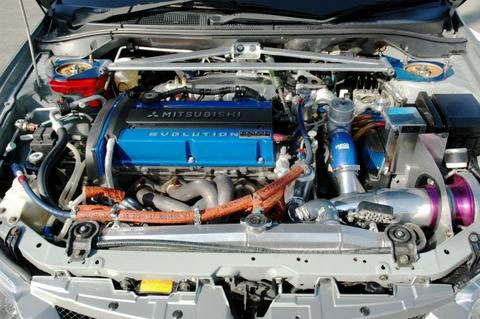

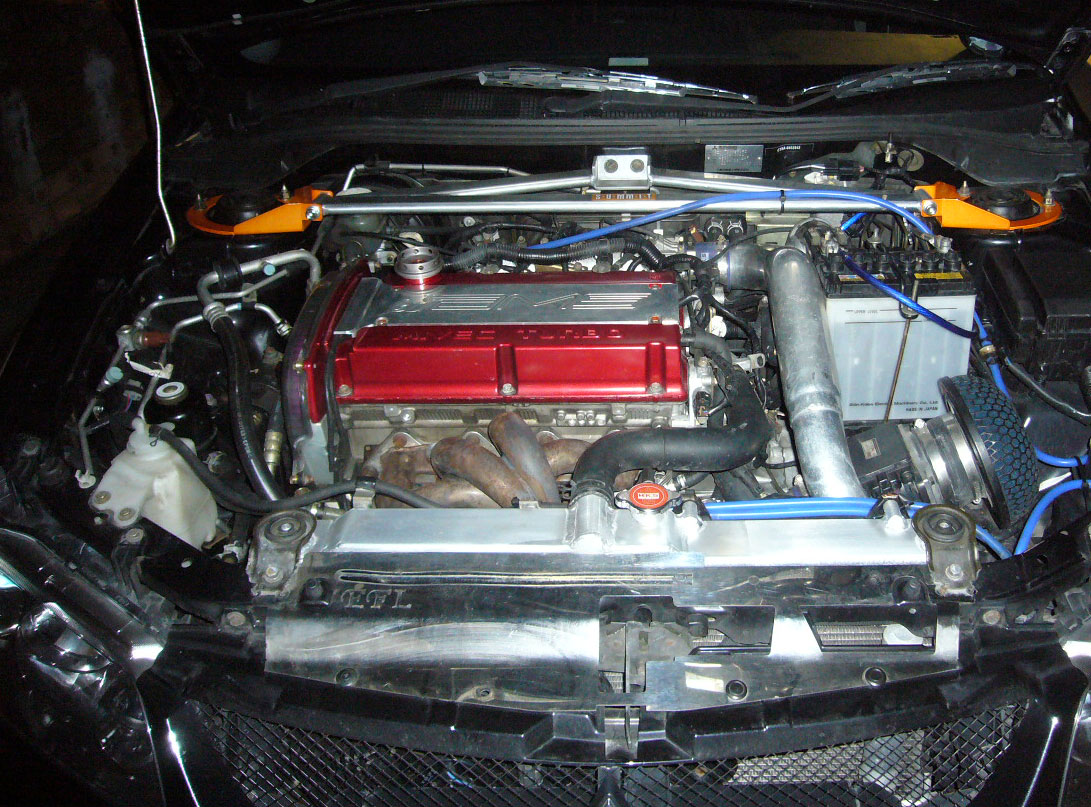

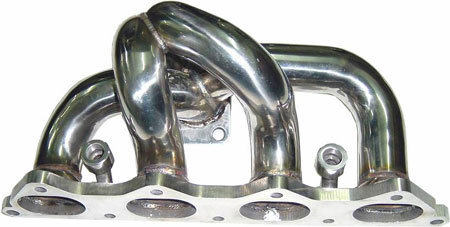

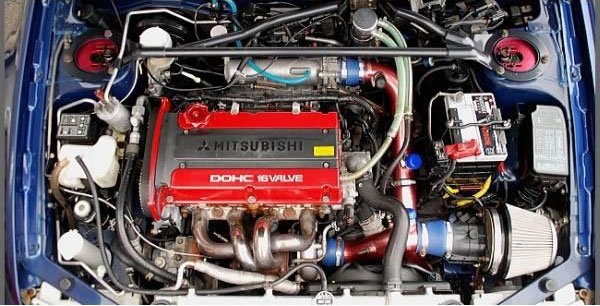

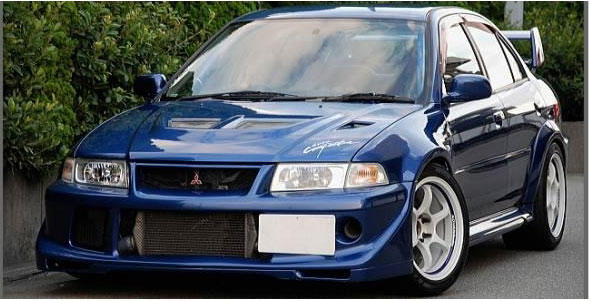

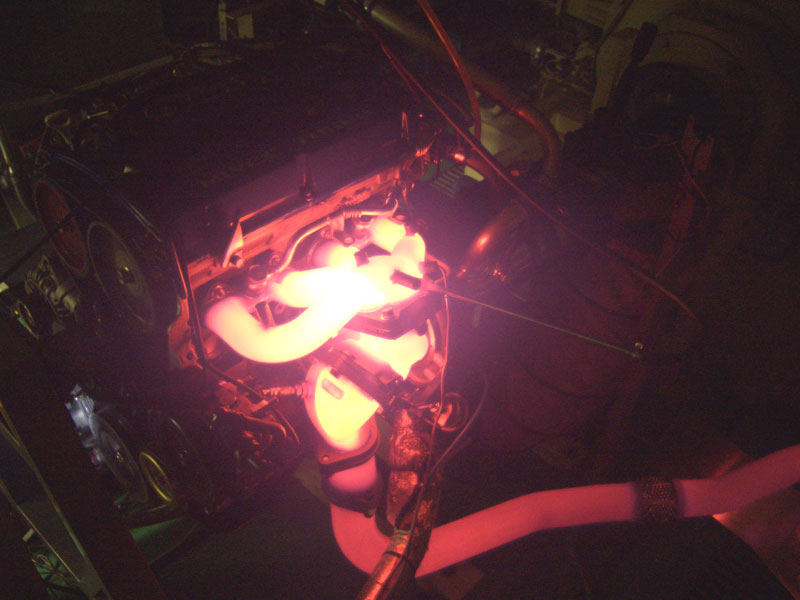

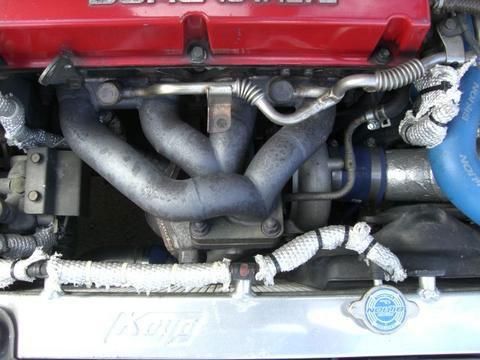

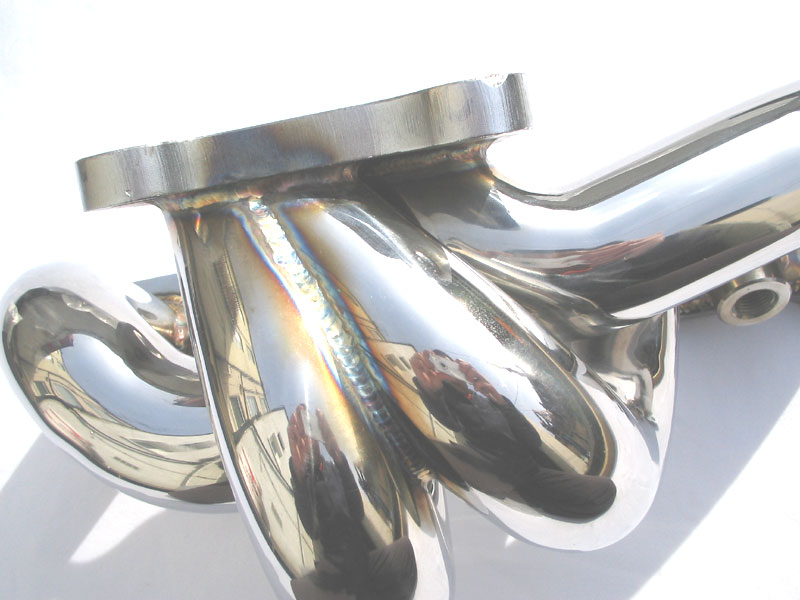

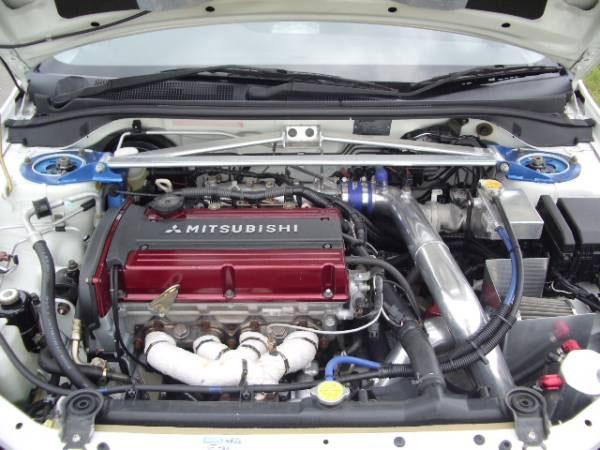

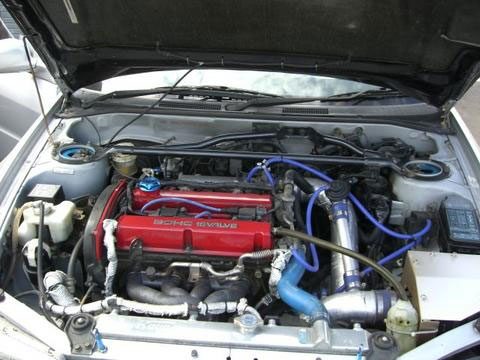

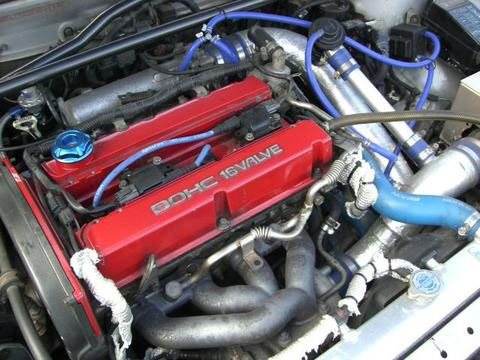

	JG4-015 EVO-4/5/6/7/8	SRS High Polish Stainless Steel Turbo Manifold. Fitment Mitsubishi Evo 4, 5, 6, 7 , 8 and 9 01 to 07 Model CN9A or CP9A and CT9A Engine Code 4G63T. Below the picture shows that EVO turbo manifold testing with engine which can stand high temperature over 1000 degrees.		£270+VAT IN STOCK

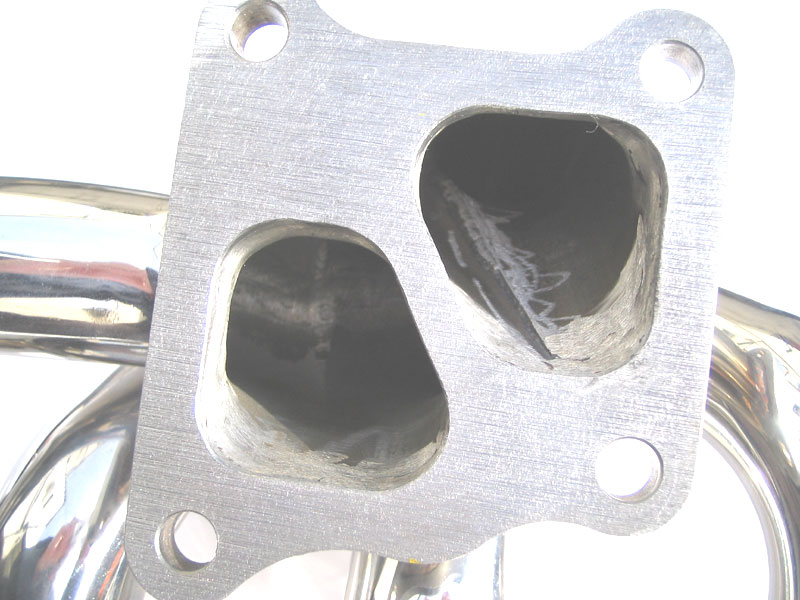

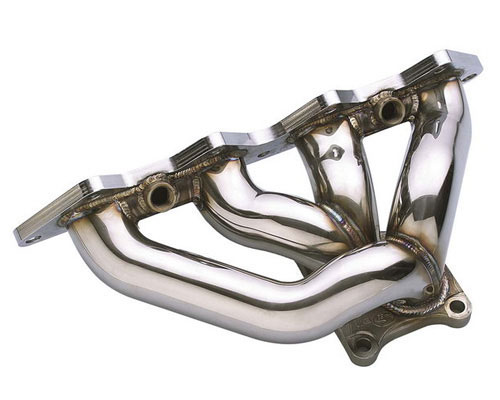

	JIM- EVO 4 TO 9 TURBO MANIFOLD	Atted High Polish Stainless Steel Turbo Manifold. EVO 4 to 9 Turbo manifold. Below pictures, the finishing on the manifold and welding are extremely smooth and strong. It has been polished in and out. Similar to Mine's		£390+VAT OUT OF STOCK

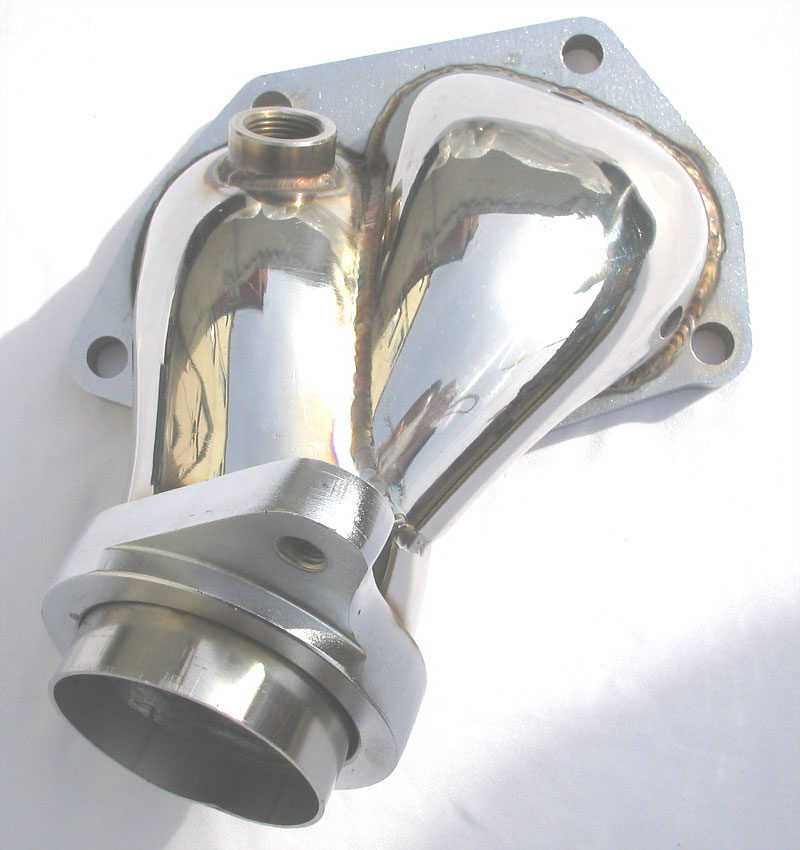

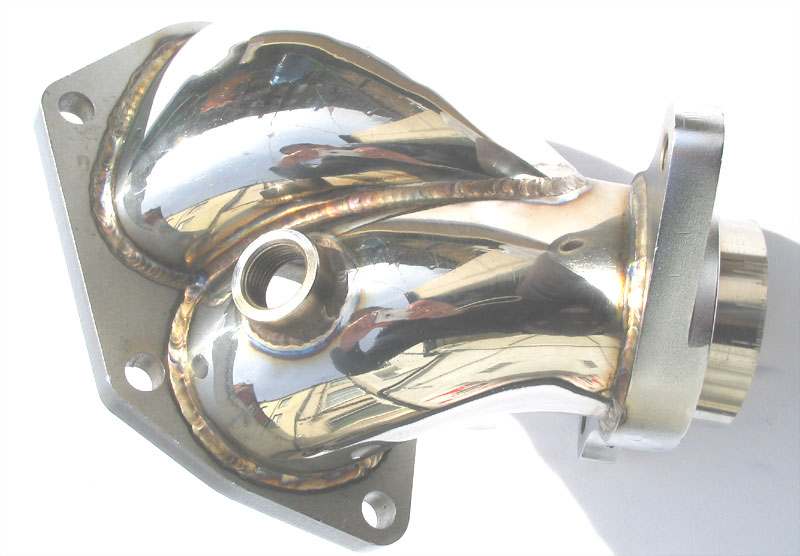

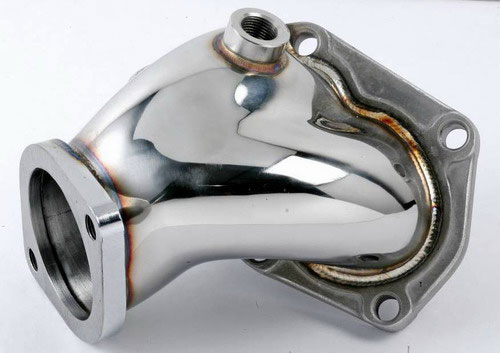

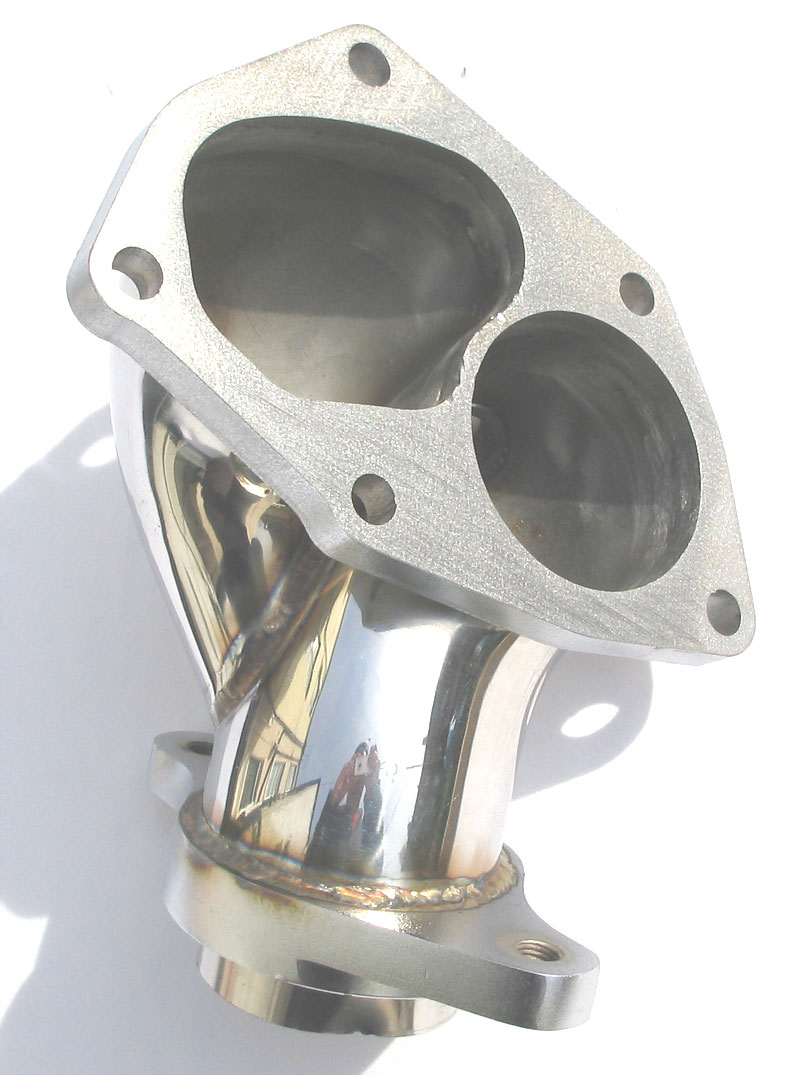

	JIM- EVO 4 TO 9 TURBO OUTLET		Atted High Polish Stainless Steel Turbo Outlet. Made Out Of Cast EVO 4 to 9 turbo outlet. The finishing on the outlet and welding are extremely smooth and strong. It has been polished in and out. Similar to Tomei & Mine's & Border and Sunline auto Turbo Outlet.	£165+VAT IN STOCK

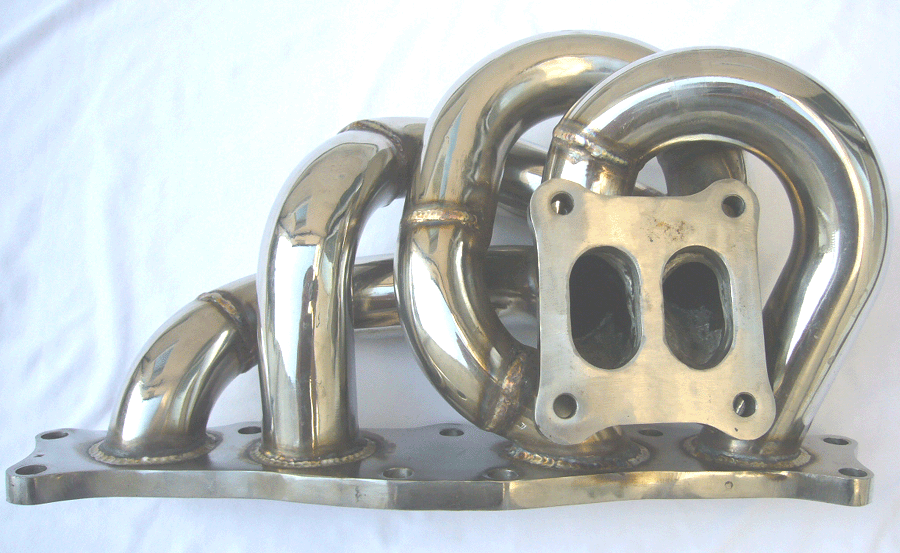

	JG4-023 3S-GTE	RSR High Polish Stainless Steel Turbo Manifold. Toyota MR2 & Celica turbo 2L 16V Model SW20 Engine code 3S/GTE DOHC Turbo This manifold has 9 bolt holds ONLY, it does not fit for the 8 bolt holds for MR2 & Celica GT4 Model ST185 And ST205		£290 +VAT IN STOCK

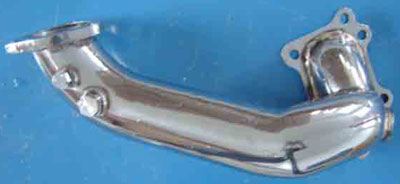

	JG2-051 3S-GTE	High Polish Stainless Steel Turbo Downpipe. Toyota MR2 turbo 90 to 96.And Celica GT4 Model ST185 And ST205		£130 +VAT OUT OF STOCK

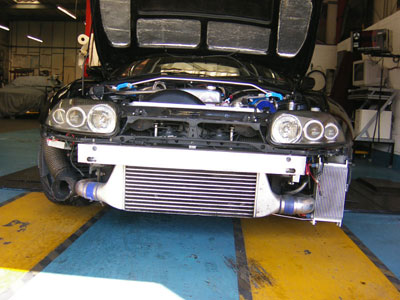

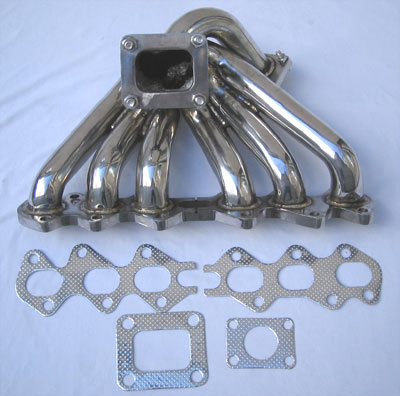

	JZA80 SUPRA	Toyota Supra twin Turbo Model JZA80 92 to 96 Engine Code 2JZ-GTE RSR High Polish Stainless Steel Turbo Manifold Upgrade to one single big turbo example,T51,T78,T88		£290 +VAT IN STOCK

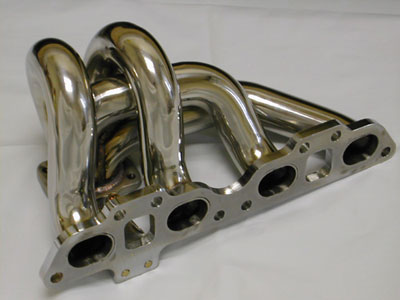

	JG4-001 SR20-DET S13/S14/S15	Speed Shop High Polish Stainless Steel Turbo Manifold. Nissan Silvia 240sx and UK 200SX, S13, S14, S14A & S15, 93 to 02 Engine Code SR20-DET.		£290 +VAT OUT OF STOCK

	JIM-SR20-DET S14/S14A/S15	Attkd High Polish Stainless Steel Turbo Manifold. Nissan Silvia 240sx and UK 200SX, S13, S14, S14A & S15, 93 to 02 and Engine Code SR20-DET. Below 4 pictures, the finishing on the manifold and welding are extremely smooth and strong. It has been polished in and out. Similar to Tomei		£330+VAT IN STOCK

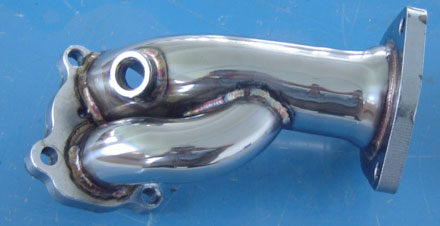

	JIM-SR20-DET TURBO OUTLET		High Polish Stainless Steel Turbo Outlet. Nissan 200SX, S13, S14, S14A & S15, 93 to 02 Engine Code SR20DET. The finishing on the outlet and welding are extremely smooth and strong. It has been polished in and out. Similar to Mine's	£145+VAT IN STOCK
	JIM-SR20-DET TURBO OUTLET	Attkd High Polish Stainless Steel Turbo Outlet. Made Out Of Cast Nissan 200SX, S13, S14, S14A & S15, 93 to 02 Engine Code SR20DET. The finishing on the outlet and welding are extremely smooth and strong. It has been polished in and out. Below 2 pictures, the finishing on the Outlet and welding are extremely smooth and strong. It has been polished in and out. Similar to Tomei		£195+VAT IN STOCK


	JG3-011 SR20-DET	Attkd High Polish Stainless Steel Turbo Outlet. Nissan 200SX, S13, S14, S14A & S15, 93 to 02 Engine Code SR20DET.		£145+VAT IN STOCK

	S13/14 DP	High Polish Stainless Steel Turbo Outlet. Nissan 200SX, S13, S14, S14A & S15, 93 to 02 Engine Code SR20DET.		£120 +VAT IN STOCK

	RB20DET	High Polish Stainless Steel Turbo Outlet. Nissan Skyline R32, R33 GTS-T Engine Code RB20 & RB25DET 89 to 99.		£130 +VAT IN STOCK

	JG4-007 RB20/25DET	High Polish Stainless Steel Turbo Manifold, need to use external wastegate, turbo will be sitting on the top. Example of Turbo, T3,T4 and T51 Nissan Skyline R32, R33 GTS-T Engine Code RB20 & RB25DET 89 to 99.		£270 +VAT OUT OF STOCK

	NS/TM-RB26DETT	Speed Shop High Polish Stainless Steel Turbo Manifold. Nissan Skyline R32, R33, R34 GTR Engine Code RB26-DETT 89 to 02		£290 +VAT IN STOCK ONE SET

	JIM-RB26DETT TURBO OUTLET	Attkd High Polish Stainless Steel Turbo Outlet. Made Out Of Cast Nissan Skyline R32, R33, R34 GTR Engine Code RB26-DETT 89 to 02		£290+VAT IN STOCK ONE SET

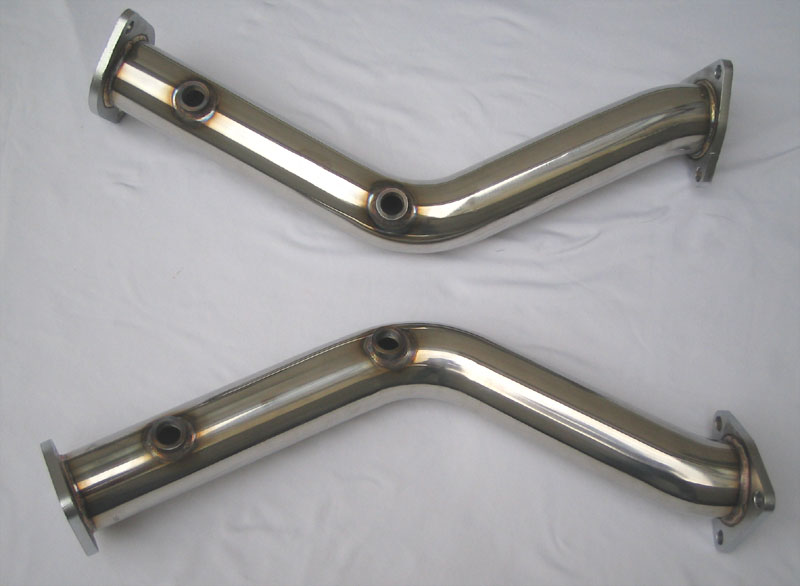

	350Z-SS/FRONT PIPE	High Polish Stainless Steel Front Pipe, Light Weight. For Nissan 350Z 02 ONWARDS. Similar to Tomei		£180 +VAT IN STOCK ONE SET

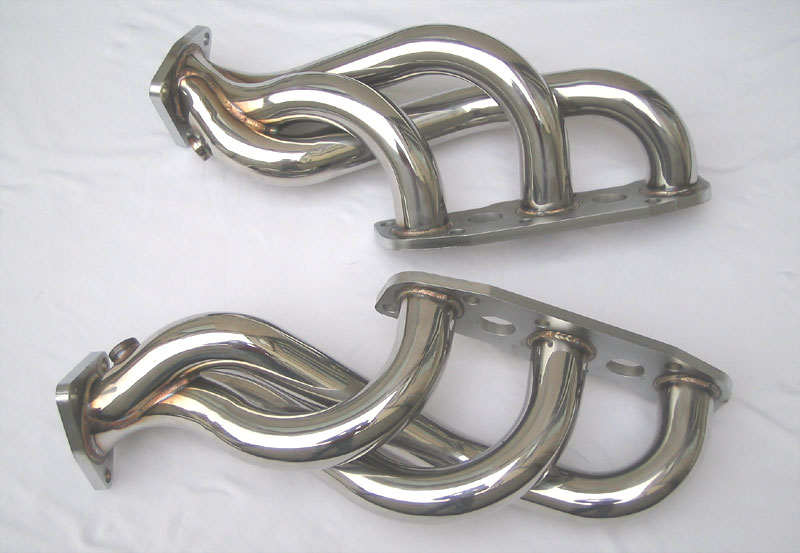

	Z350-SS/MANIFOLD	High Polish Stainless Steel Manifold, Light Weight. For Nissan Infiniti and 350Z 02 ONWARDS. Similar to Tomei		£400+VAT OUT OF STOCK ONE SET

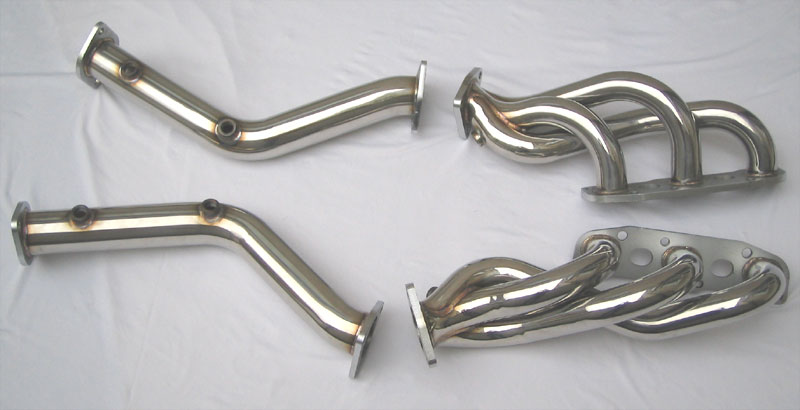

	Z350-SS-FRONT PIPES/MANIFOLD SET	High Polish Stainless Steel Manifold & Front Pipe (One Set), Light Weight. For Nissan 350Z 02 ONWARDS. Similar to Tomei		£540+VAT OUT OF STOCK ONE SET

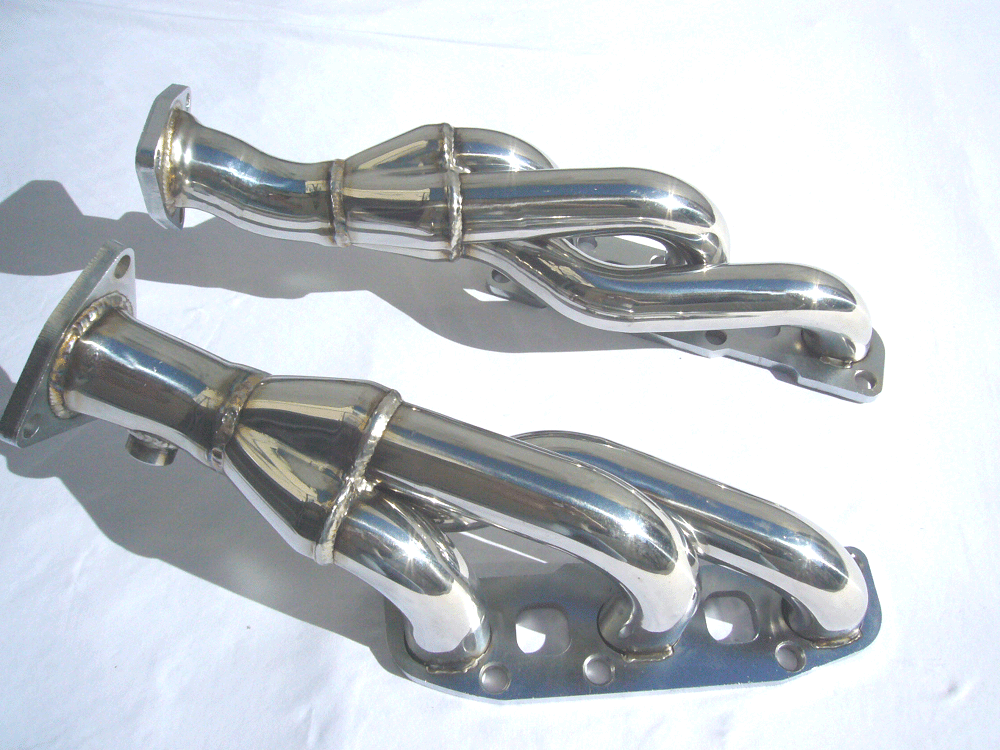

	INFINITI and Z33/350Z NI-350Z-000	High Polish Stainless Steel Manifold, Light Weight. For Nissan Infiniti and 350Z 02 ONWARDS. Similar to Fujitsubo and Thunder Sports		£400+VAT IN STOCK ONE SET

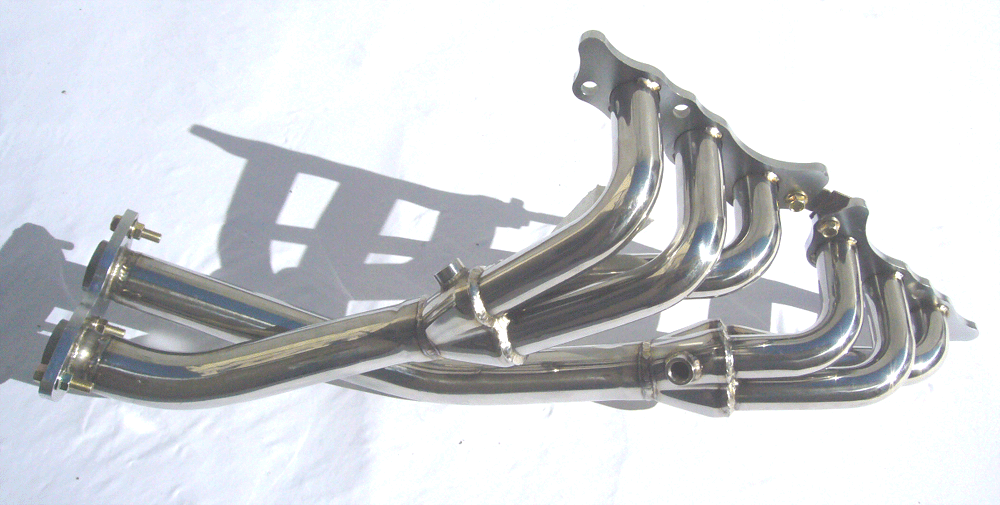

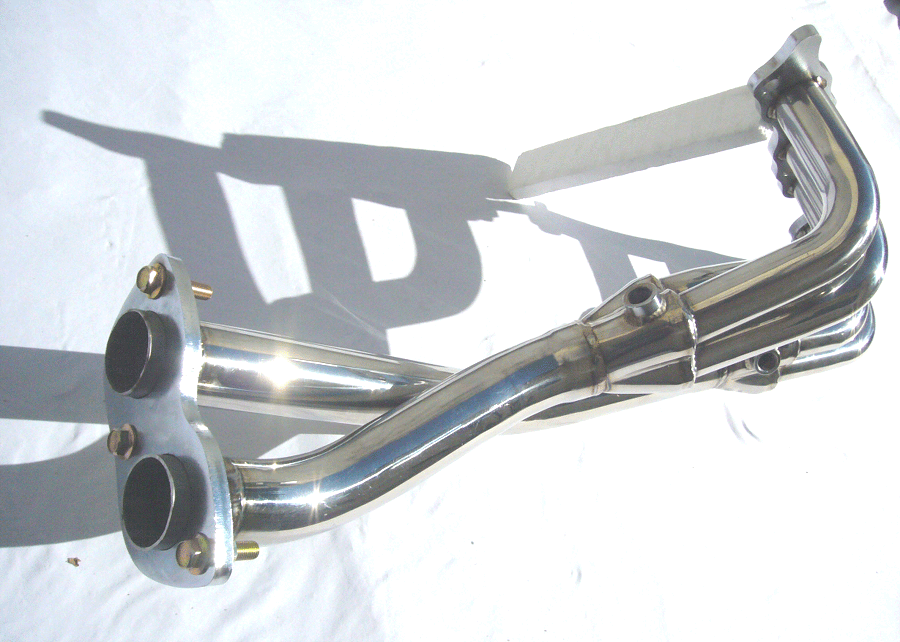

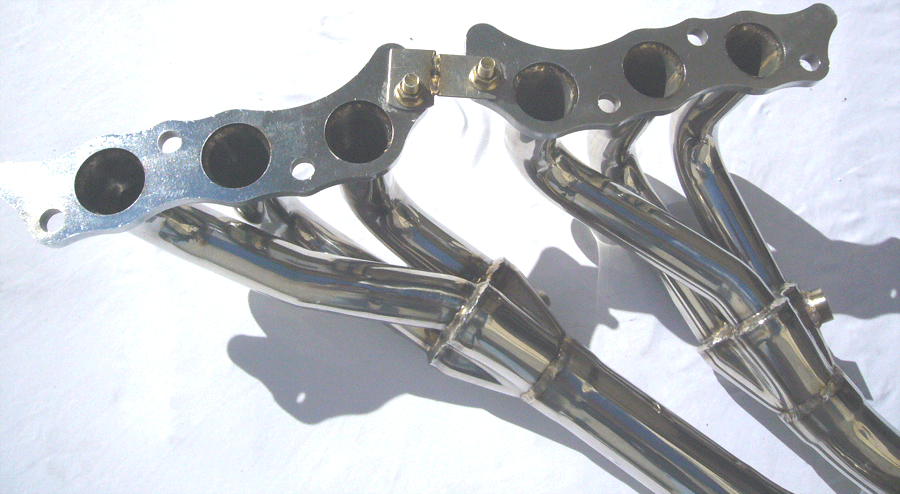

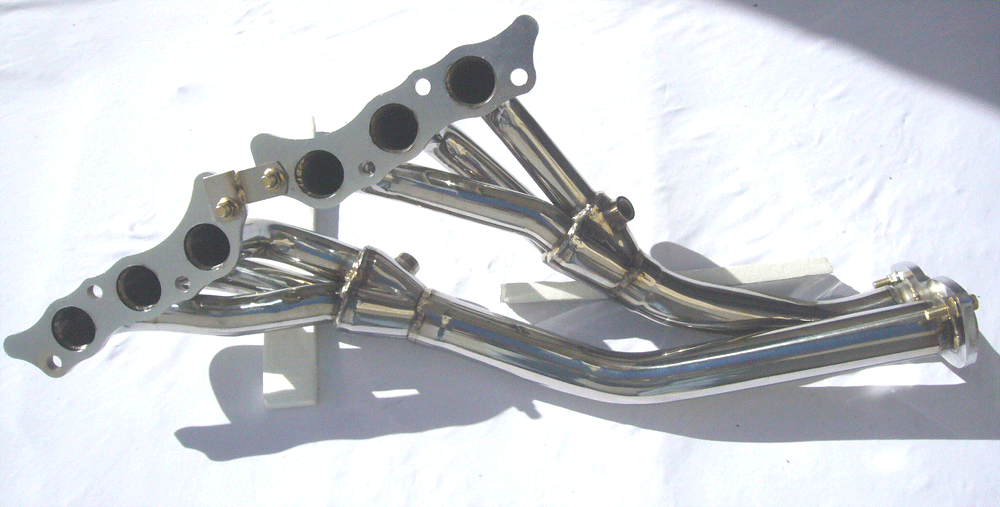

	LEXUS-IS200 LI101-000	High Polish Stainless Steel Manifold With Two Sensor Holds and Light Weight 9.5kg For Toyota Lexus IS200 00 to 05 Similar to Tome,s and Fujitsubo		£490+VAT IN STOCK

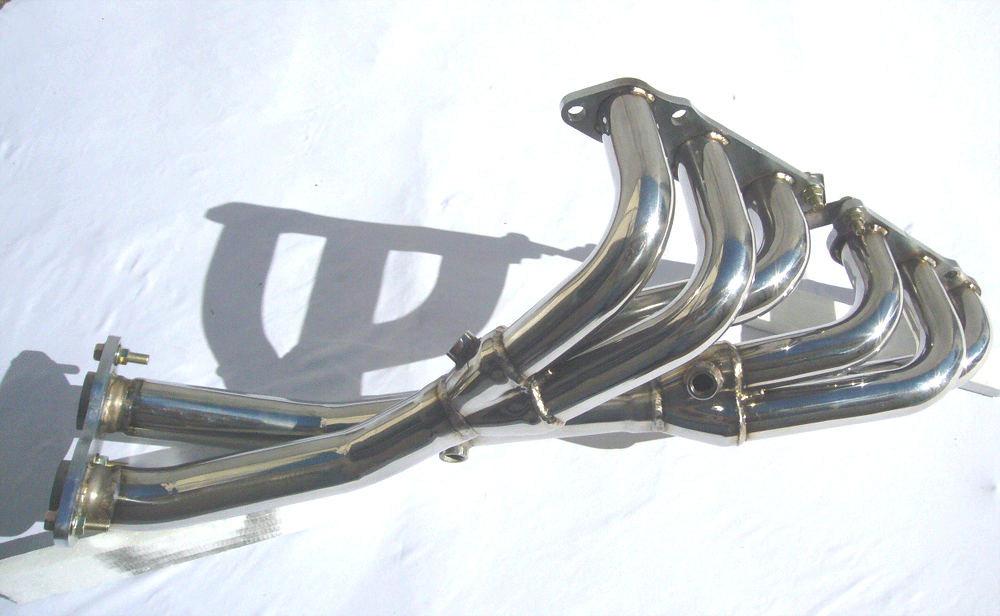

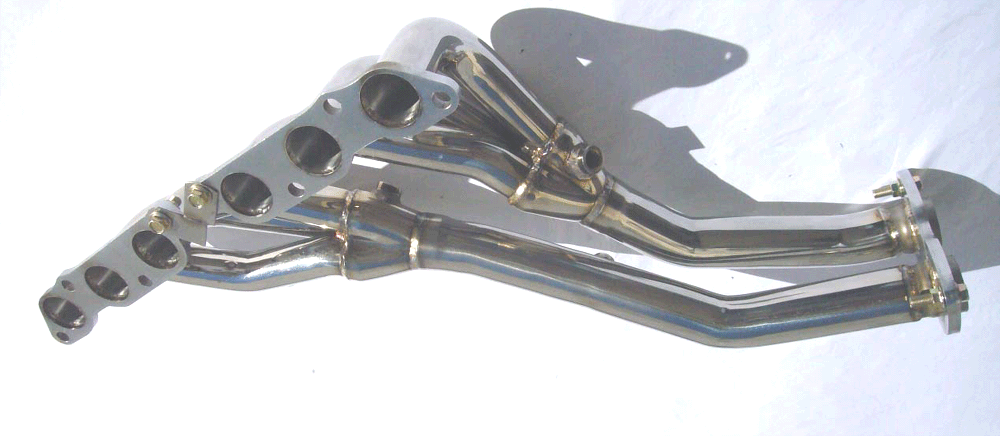

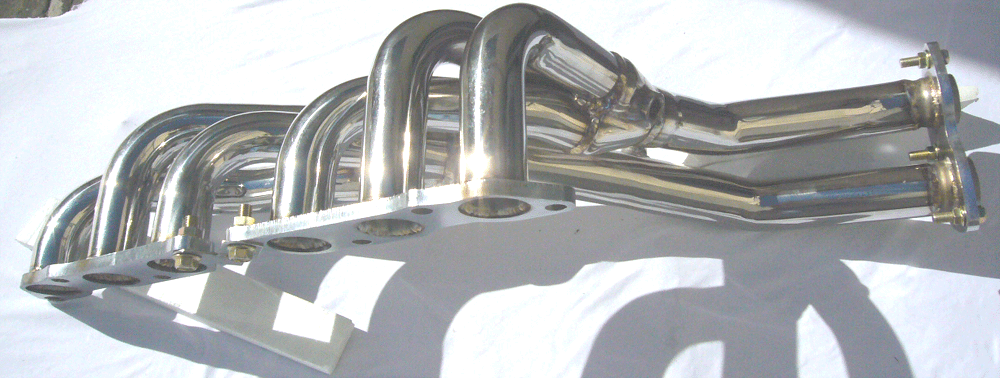

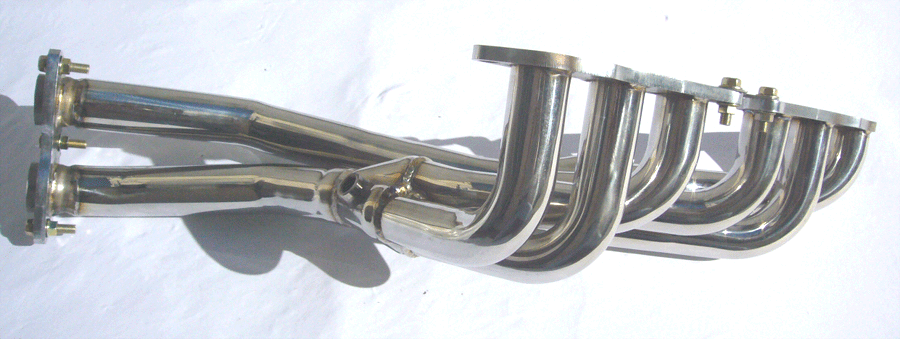

	LEXUS-IS300 LI102-000	High Polish Stainless Steel Manifold With Three Sensor Holds and Light Weight 9.5kg For Toyota Lexus IS300-VVTI Similar to Tome,s and Fujitsub		£550+VAT IN STOCK



	LEXUS-GS300 LG101-000	High Polish Stainless Steel Manifold With Three Sensor Holds and Light Weight 9.5kg For Toyota Lexus GS300 and VVTI. 98 to 05 Similar to Tome,s and Fujitsubo		£550+VAT IN STOCK

Terms & Conditions

6 months guarantee. If manifold was damaged (cracks in the welding), caused by bad engine or gear box mounting, leading to the result of vibration during driving, warranty is void.
If manifold was damaged caused by car accident, even though accident was not your fault, warranty is void.

4-2-1 One Piece
